SPESIFIKASI
Max pressure : 109 Psi *Shut off
Straight stream reach : 35 meter
Laju aliran (flow) : 230 L/menit
Waktu hisap : 10.81 detik
| ENGINE |
|
| Merk |

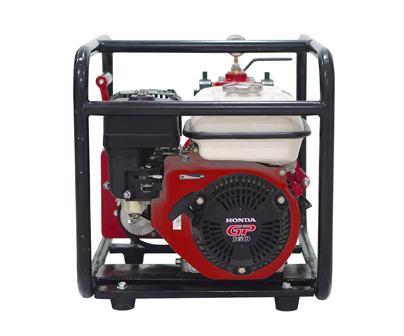

Honda GP160 |
| Engine type |
4-stroke, overhead valve, single cylinder |
| Displacement |
163 cm³ |
| Bore X Stroke |
68.0 x 45.0 mm |
| Compression ratio |
08.05 |
| Gross horsepower |
4kW (5.5HP)/3600rpm |
| Net power (SAE J1349)* |
3.6 kW (4.8HP)/3,600rpm |
| Max. Net torque (SAE J1349)* |
10.3 N.m (1.05 kgf-m)/2,500rpm |
| Starting system |
Recoil starter |
| Cooling system |
Forced air |
| Spark plug |
BPR6ES, (NGK) W20EPR-U (DENSO) |
| Ignition system |
Transistorized magneto ignition |
| Lubrication system |
Forced spray system |
| Oil capacity |
0.58 liters, SAE 10W-30 (API SE or Later) |
| Fuel tank capacity |
3.1 liters |
| Recommended Fuel |
Unlead 86 octane or higher |
|
|
| PUMP |
|
| Type |
Single stage centrifugal, direct drive |
| Body & diffusers |
Anodized resistant aluminium |
| Impeller |
Anodized resistant aluminium |
| Pump shaft |
Stainless steel |
| Pump seal |
Heat resistant rotary mechanical seal |
