SPESIFIKASI
Max pressure : 95 Psi *Shut off
Straight stream reach : 30 meter
Laju aliran (flow) : 210 L/menit
Waktu hisap : 25.30 detik

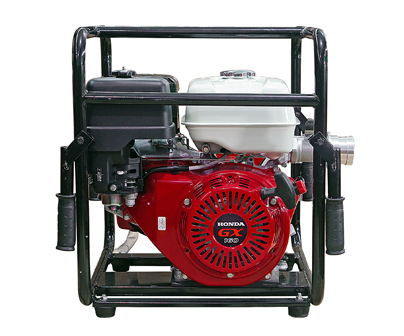

ENGINE
| Merk /
Model |
Honda / GX160 |
| Engine type |
4-stroke, overhead valve single cylinder, inclined by 25° |
| Displacement |
163 cm³ |
| Bore and stroke |
68.0 x 45.0 mm |
| Compression ratio |
09.00 |
| Gross power (SAE J1995) |
4 kW (5.5 HP)/3600rpm |
| Net power (SAE J1349)* |
3.6 kW (4.8 HP)/3600 rpm |
| Max. Net torque (SAE J1349)* |
10.3 N.m (1.05 kgf-m)/2,500rpm |
| Starting system |
Recoil starter |
| Ignition system |
Transistorized magneto ignition |
| Spark plug |
BPR6ES (NGK) / W20EPR-U (DENSO) |
| Air cleaner |
Semi dry |
| Oil capacity |
0.58 Liters SAE 10W-30 (API SE or Later) |
| Fuel tank capacity |
3.1 liters |
| Recommended fuel |
Unlead 86 octane or higher |
|
|
|
|

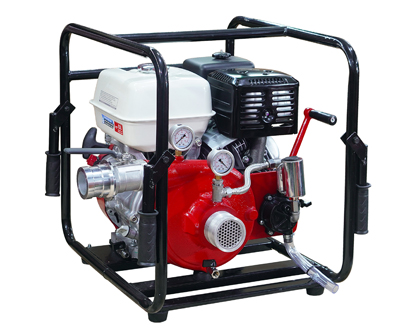

| PUMP |
|
| Type |
Single stage centrifugal, direct drive |
| Body & diffusers |
Anodized resistant aluminium |
| Impeller |
Anodized resistant aluminium |
| Pump shaft |
Stainless steel |
| Pump seal |
Heat resistant rotary mechanical seal |
