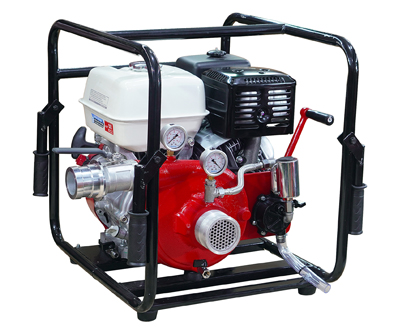

SPESIFIKASI
Max pressure : 109 Psi *Shut off
Straight stream reach : 40 meter
Laju aliran (flow) : 560 L/meniT
Waktu hisap : 15.79 detik
| ENGINE |
|
| Merk / Model |
Honda / GX430 |
| Engine type |
4-stroke, overhead valve single cylinder, inclined by 25° |
| Displacement |
425 cm³ |
| Bore and stroke |
88.0 x 70.0 mm |
| Compression ratio |
09.00 |
| Gross power (SAE J1995) |
11.2 kW (15 HP)/3600rpm |
| Net power (SAE J1349)* |
9.6 kW (13 HP)/3600 rpm |
| Max. Net torque (SAE J1349)* |
27.7 N.m/2500 rpm |
| Starting system |
Electric / Recoil starter |
| Ignition system |
CDI type magneto ignition |
| Spark plug |
BPR6ES (NGK) / W20EPR-U (DENSO) |
| Air cleaner |
Dual element type |
| Oil capacity |
1.1 Liters, SAE 10W-30 (API SE or Later) |
| Fuel tank capacity |
6.1 liters |
| Recommended fuel |
Unlead 86 octane or higher |
|
|
|
|
| PUMP |
|
| Type |
Single stage centrifugal, direct drive |
| Body & diffusers |
Anodized resistant aluminium |
| Impeller |
Anodized resistant aluminium |
| Pump shaft |
Stainless steel |
| Pump seal |
Heat resistant rotary mechanical seal |
