| Merk / Model |

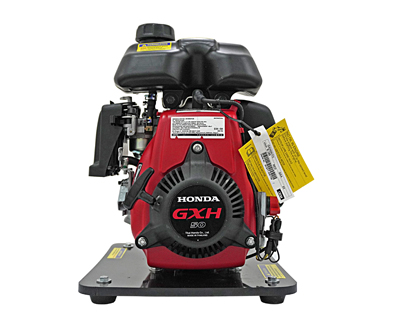

Honda / GXH50 |
| Engine type |
4-stroke, overhead valve, single cylinder |
| Displacement |
49.4 cm³ |
| Bore X Stroke |
41.8 X 36.0 mm |
| Compression ratio |
8.0:1 |
| Gross horsepower |
1.8 kW (2.5 HP)@7000rpm |
| Net power (SAE J1349)* |
1.6 kW (2.1 HP) @7000 rpm |
| Max. Net torque (SAE J1349)* |
2.7 Nm (0.28 kgf.m, 2.0 lb-ft)@4.500 rpm |
| Starting system |
Recoil starter |
| Cooling system |
Forced air |
| Spark plug |
CR5HSB (NGK) |
| Ignition system |
Transistorized |
| Lubrication system |
Forced splash |
| Governor System |
Mechanical centrifugal |
| Air cleaner |
Semi-dry type |
| Oil capacity |
0.25 liters, SAE 10W-30 (API SE or Later) |
| Fuel tank capacity |
0.77 liters |
| Recommended Fuel |
Unlead 86 octane or higher |
| Type |
Single stage centrifugal, direct drive |
| Body & diffusers |
Anodized resistant aluminium |
| Impeller |
Anodized resistant aluminium |
| Pump shaft |
Stainless steel |
| Pump seal |
Heat resistant rotary mechanical seal |
PUMP |
|
| Type |
Single stage centrifugal, direct drive |
| Body & diffusers |
Anodized resistant aluminium |
| Impeller |
Anodized resistant aluminium |
| Pump shaft |
Stainless steel |
| Pump seal |
Heat resistant rotary mechanical seal |
| Outlet |
Adaptor machino 1.5” |
| Inlet |
Camlock 1.5” / Drat BSP 1.5” |
